10FT and 20FT Expandable Container House
  • 10FT and 20FT Expandable Container House10FT and 20FT Expandable Container House
  • 10FT and 20FT Expandable Container House10FT and 20FT Expandable Container House
  • 10FT and 20FT Expandable Container House10FT and 20FT Expandable Container House
  • 10FT and 20FT Expandable Container House10FT and 20FT Expandable Container House
  • 10FT and 20FT Expandable Container House10FT and 20FT Expandable Container House
  • 10FT and 20FT Expandable Container House10FT and 20FT Expandable Container House

10FT and 20FT Expandable Container House

Liansheng International, a prominent supplier based in China, introduces a groundbreaking solution: the 10FT and 20FT Expandable Container House. Our innovative container design revolutionizes convenience and efficiency, allowing for swift assembly in just five minutes.

Send Inquiry

Product Description

As 10FT and 20FT Expandable Container House dedicated suppliers, we prioritize delivering cutting-edge solutions that redefine traditional expectations. Whether for rapid deployment, temporary structures, or dynamic events, our Foldable Containers offer unparalleled speed and ease of use. Trust Liansheng International for a seamless fusion of rapid assembly, durability, and superior functionality in container technology.


Folding house: The folding house is an openable house composed of aluminum alloy frame and PC endurance board. It has the advantages of being lightweight, convenient, beautiful, and energy-saving, so it is favored by more and more people.


[Use Cost Advantage] - Folding design, aluminum alloy frame, stainless steel hinges, sturdy and durable, with long life after repeated use of more than 10,000 times. It is easy to prepare and can greatly reduce the cost of use for customers who use it for a long time and in large quantities.


[Transportation Cost Advantage] - Folding structure, compressed shipping, convenient for sea, land and air transportation. Greatly reduce batch transportation costs.


[Installation cost advantage] - Manual/electric/mechanical folding operation methods, a house can be easily built within 3-5 minutes, without on-site construction, greatly reducing labor and time costs.


[Storage Cost Advantage] - It occupies a small area after folding, uses the smallest space to store the most house, and greatly reduces storage costs.

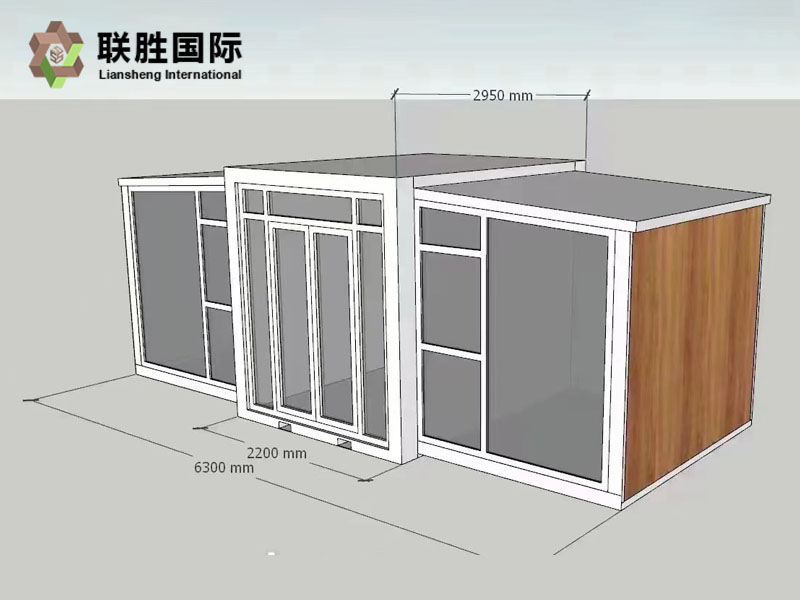

10FT Double Wing Expandable Container House Configuration

Product model 10FT Expandable Container House
Extended size L2950*W6300*H2480mm
Internal dimensions L2510*W6140*H2240mm
Folding size L2950*W2200*H2480mm
Land Area 18.5㎡
type one living room
Capacity  2~4 people
Electric power 12KW
Total net weight 1.65 tons
Appearance pictures are for reference only

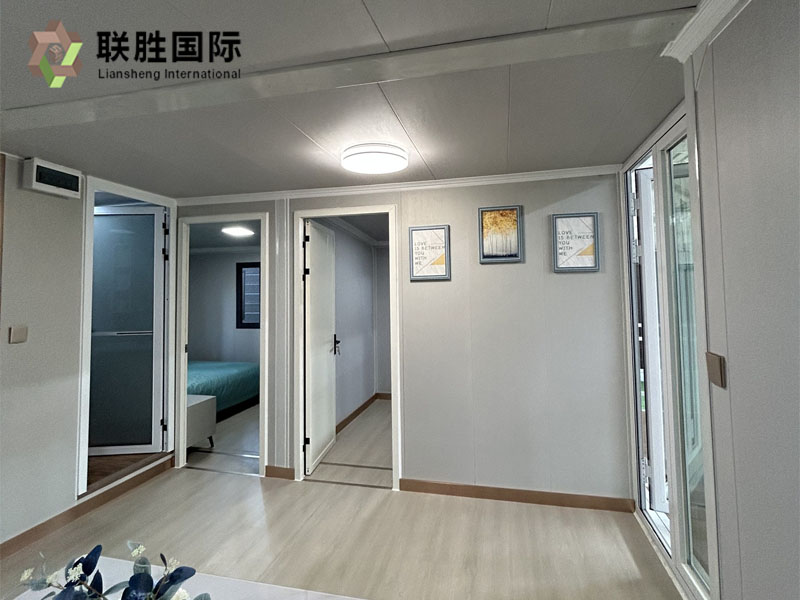

Frame Structure Interior view renderings
NO Name Content Specification
1 Main Frame (fully galvanized to national standard) Top and side beams 80*100*2.5mm galvanized square tube
2 top beam Galvanized bending parts 2.5mm
3 Top longitudinal secondary beam  30*30*1.3mm galvanized square tube
4 Top transverse secondary beam  40*60*1.5mm galvanized square tube
5 Bottom side beam 80*100*2.5mm galvanized square tube
6 Bottom beam Galvanized bending parts 2.5mm thick
7 Bottom longitudinal secondary beam  40*80*1.5mm galvanized square tube
8 Bottom transverse secondary beam  40*80*1.5mm galvanized square tube
9 6mm galvanized hanging head Galvanized hanging head L210*W150*H160mm
10 steel column Galvanized bending parts 2.5mm thick
11   Side Frame (fully galvanized national standard) top frame P40*80*1.5mm P-shaped tube
12 40*80*1.5mm galvanized square tube

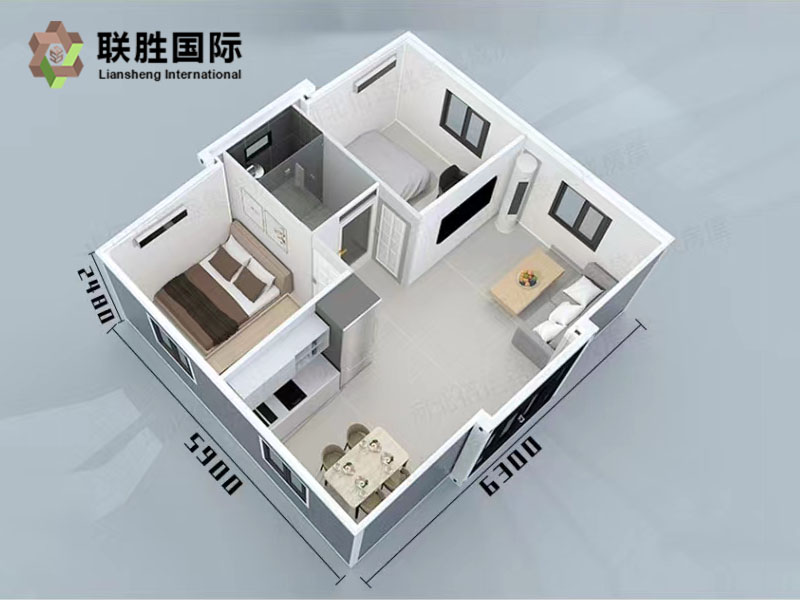

13 bottom frame 60*80*2.0mm galvanized square tube layout drawing
14 folding hinge 130mm galvanized hinge
15 Overall frame protective coating Spray paint Electrostatic spraying/straight white plastic powder baking process + anti-corrosion coating
16 Top external roof Type 950 - 50mm thick double-sided 0.3mm, EPS color steel composite panel + corrugated veneer t0.45mm
17 Wing roof Type 950 - 65mm thick double-sided 0.3mm, EPS color steel composite panel + corrugated veneer t0.45mm
18 interior ceiling panels Type 950-50mm thick double-sided 0.3mm, EPS color steel composite panel
19 Wall panels Side walls, front and rear walls Type 950-65mm thick double-sided 0.3mm, EPS color steel composite panel
20 Interior partition wall panels Type 950-50mm thick double-sided 0.3mm, EPS color steel composite panel
21 Floor Main frame Fireproof cement fiber floor 18mm thick
22 two wings Bamboo plywood 18mm thick
23 Doors and Windows Plastic steel double glass sliding window 920*920mm*4 fans
24 High quality steel fire door 840*2035mm*1 piece
25 Electrical System circuit breaker system 1 32A leakage protector. Voltage 220V, 50HZ
26 lamp Bull 30*30 flat panel lamp, large ceiling lamp
27 socket Standard international three-hole and five-hole sockets (socket standards can be configured according to customer requirements)
28 light switch Double-open, single-button switch (switch standard can be configured according to customer requirements)
29 Wiring Incoming wire 6², air conditioning socket 4², ordinary socket 2.5², lighting 1.5². (Standard national standard wires, circuits that meet certification requirements can be customized according to the country)
30 Accessories Including corner lines, skirting lines, corner wrapping, waterproof tape, suspenders, structural glue (Baiyun), glue gun
Remark This quotation is valid for three days
Set/cabinet 40HQ can load 4 sets


20FT Double Wing Expandable Container House configuration

Product model 20FT Expandable Container House
Extended size L5900*W6300*H2480mm
Internal dimensions L5460*W6140*H2240mm
Folding size L5900*W2200*H2480mm
Land Area 37㎡
type one living room
Capacity 2~4 people
Electric power 12kW
Total net weight 3.12 tons
Appearance pictures are for reference only
Frame Structure Interior view renderings
NO Name Content Specification
1 Main frame (fully galvanized to national standard) Top and side beams 80*100*2.5mm galvanized square tube
2 top beam Galvanized bending parts 2.5mm
3 Top longitudinal secondary beam 30*30*1.3mm galvanized square tube
4 Top transverse secondary beam 40*60*1.5mm galvanized square tube
5 Bottom side beam 80*100*2.5mm galvanized square tube
6 Bottom beam Galvanized bending parts 2.5mm thick
7 Bottom longitudinal secondary beam 40*80*1.5mm galvanized square tube
8 Bottom transverse secondary beam 40*80*1.5mm galvanized square tube
9 6mm galvanized hanging head Galvanized hanging head L210*W150*H160mm
10 steel column Galvanized bending parts 2.5mm thick
11   Side frame (fully galvanized national standard) top frame P40*80*1.5mm P-shaped tube
12 40*80*1.5mm galvanized square tube Comparison of interior renderings of optional upgrades
13 bottom frame 60*80*2.0mm galvanized square tube
14 folding hinge 130mm galvanized hinge
15 Overall frame protective coating Spray paint Electrostatic spraying/straight white plastic powder baking process + anti-corrosion coating
16 Top external roof Type 950 - 50mm thick double-sided 0.3mm, EPS color steel composite panel + corrugated veneer t0.45mm
17 Wing roof Type 950 - 65mm thick double-sided 0.3mm, EPS color steel composite panel + corrugated veneer t0.45mm
18 interior ceiling panels Type 950-50mm thick double-sided 0.3mm, EPS color steel composite panel
19 Wall panels Side walls, front and rear walls Type 950-65mm thick double-sided 0.3mm, EPS color steel composite panel
20 Interior partition wall panels Type 950-50mm thick double-sided 0.3mm, EPS color steel composite panel
21 Floor Main frame Fireproof cement fiber floor 18mm thick
22 two wings   Bamboo plywood 18mm thick layout drawing
23 Doors and Windows Plastic steel double glass sliding window 920*920mm*4 fans
24 High quality steel fire door 840*2035mm*1 piece
25 Electrical System circuit breaker system 1 32A leakage protector. Voltage 220V, 50HZ
26 lamp Bull 30*30 flat panel lamp, large ceiling lamp
27 socket Standard international three-hole and five-hole sockets (socket standards can be configured according to customer requirements)
28 light switch Double-open, single-button switch (switch standard can be configured according to customer requirements)
29 Wiring Incoming wire 6², air conditioning socket 4², ordinary socket 2.5², lighting 1.5². (Standard national standard wires, circuits that meet certification requirements can be customized according to the country)
30 Accessories Including corner lines, skirting lines, corner wrapping, waterproof tape, suspenders, structural glue (Baiyun), glue gun
Remarks This quotation is valid for three days
Set/cabinet 40HQ can load 2 sets
